Microbial Growth and Enzyme Kinetics

Principles of microbial growth kinetics

Top images from around the web for Principles of microbial growth kinetics

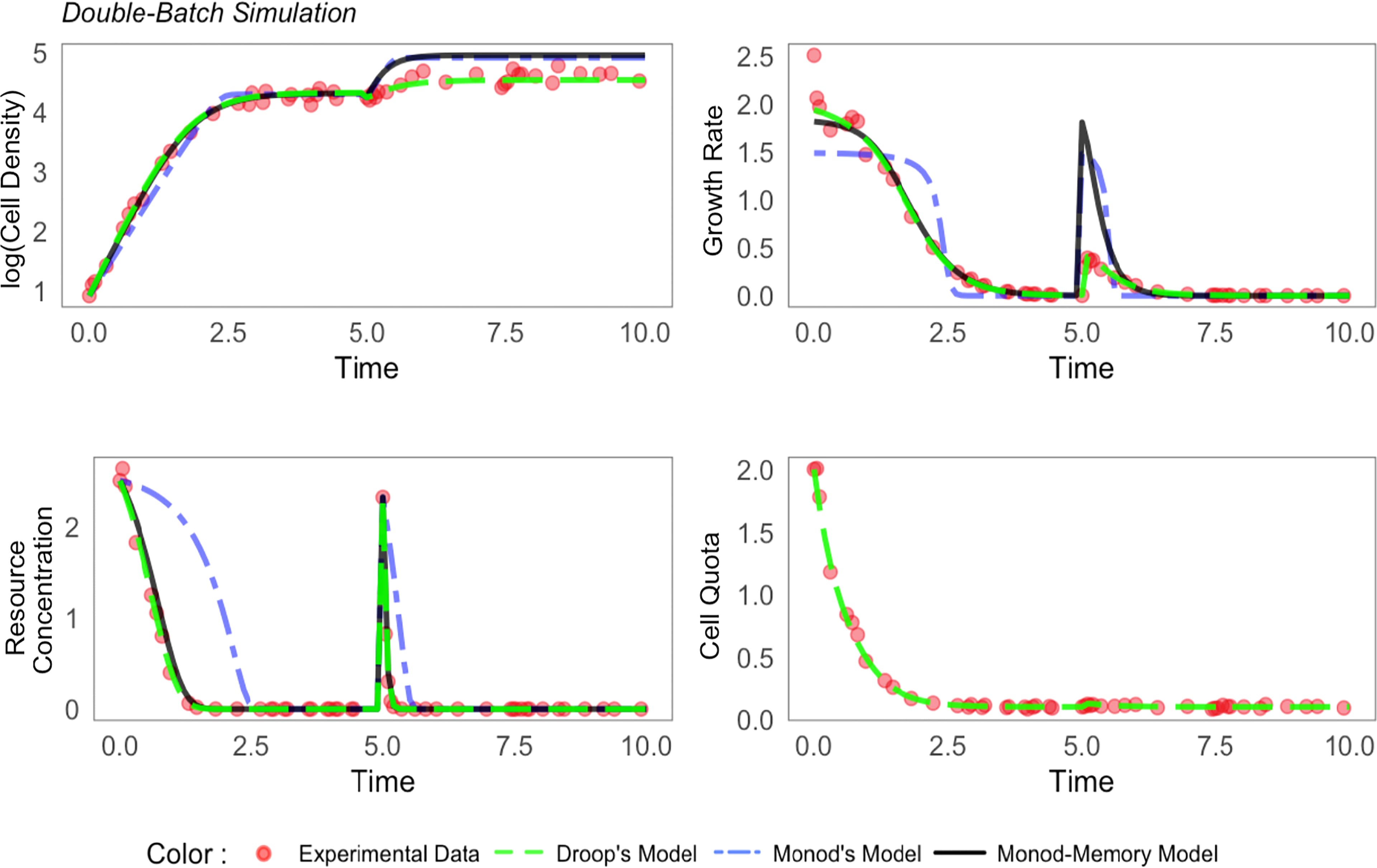

  • Frontiers | The complex relationship between microbial growth rate and yield and its ... View original

    Is this image relevant?

  • Frontiers | The complex relationship between microbial growth rate and yield and its ... View original

    Is this image relevant?

1 of 2

Top images from around the web for Principles of microbial growth kinetics

  • Frontiers | The complex relationship between microbial growth rate and yield and its ... View original

    Is this image relevant?

  • Frontiers | The complex relationship between microbial growth rate and yield and its ... View original

    Is this image relevant?

1 of 2
  • describes relationship between and
    • μ\mu represents specific growth rate how quickly biomass increases per unit of existing biomass
    • μmax\mu_{max} achieved when substrate is not limiting
    • SS substrate concentration (glucose, lactose) available for microbial growth
    • KsK_s substrate concentration at which specific growth rate is half of μmax\mu_{max}
  • YX/SY_{X/S} ratio of biomass produced to substrate consumed
    • ΔX\Delta X change in biomass concentration (cell dry weight)
    • ΔS\Delta S change in substrate concentration consumed by microorganisms
  • Microbial growth kinetics crucial for predicting biomass production and substrate utilization in bioreactors

Mathematical models for bioreactors

  • closed system with no inflow or outflow of materials
    • describe changes in biomass, substrate, and product concentrations over time
      • dXdt=μX\frac{dX}{dt} = \mu X biomass growth proportional to existing biomass and specific growth rate
      • dSdt=−1YX/SμX\frac{dS}{dt} = -\frac{1}{Y_{X/S}}\mu X substrate consumption related to biomass growth and yield coefficient
      • dPdt=YP/XμX\frac{dP}{dt} = Y_{P/X}\mu X product formation linked to biomass growth and product yield coefficient YP/XY_{P/X}
    • Integrate equations numerically or analytically to predict concentration profiles throughout the batch process
  • initially operates as a batch system with controlled addition of substrate
    • Mass balance equations modified to include substrate feed term
      • dSdt=−1YX/SμX+FV(Sf−S)\frac{dS}{dt} = -\frac{1}{Y_{X/S}}\mu X + \frac{F}{V}(S_f - S) substrate balance includes consumption and feed terms
      • dVdt=F\frac{dV}{dt} = F volume changes due to substrate feed rate FF
    • Optimize feed rate to maintain desired substrate concentration and prevent substrate inhibition or limitation
  • () operates with continuous inflow of fresh medium and outflow of culture broth
    • Mass balance equations include dilution terms for inflow and outflow
      • dXdt=μX−DX\frac{dX}{dt} = \mu X - DX biomass balance includes growth and outflow terms
      • dSdt=−1YX/SμX+D(Sf−S)\frac{dS}{dt} = -\frac{1}{Y_{X/S}}\mu X + D(S_f - S) substrate balance includes consumption, inflow, and outflow terms
      • dPdt=YP/XμX−DP\frac{dP}{dt} = Y_{P/X}\mu X - DP product balance includes formation and outflow terms
    • determines operating conditions for constant biomass, substrate, and product concentrations

Effects of operating conditions

  • Temperature affects reaction rates and enzyme stability
    • relates kk to temperature TT and EaE_a
      • k=Ae−EaRTk = A e^{-\frac{E_a}{RT}} higher temperatures increase reaction rates but may denature enzymes
    • Optimize temperature to balance growth rate and enzyme stability (mesophiles 20-45°C, thermophiles 45-80°C)
  • pH influences enzyme activity and microbial growth
    • Maintain pH within optimal range for the specific bioprocess (lactic acid bacteria pH 5.5-6.5, E. coli pH 6.5-7.5)
    • Use buffers (phosphate, Tris) or pH control systems (acid/base addition) to maintain desired pH
  • critical for aerobic bioprocesses
    • Maintain dissolved oxygen above critical level to avoid oxygen limitation (typically >20% saturation)
    • Aeration and agitation increase (OTR) from gas to liquid phase
      • OTR=kLa(C∗−CL)OTR = k_La(C^* - C_L) OTR proportional to volumetric mass transfer coefficient kLak_La and concentration driving force
    • Monitor dissolved oxygen using sensors (polarographic, optical) and control using feedback loops (adjust agitation, aeration, or oxygen enrichment)

Design of bioreactor configurations

  • versatile and widely used configuration
    • Advantages good mixing, heat transfer, and oxygen transfer
    • affects fluid flow patterns and shear stress
      • generates radial flow and high shear suitable for microbial fermentations
      • creates axial flow and lower shear ideal for shear-sensitive mammalian cells
    • prevent vortex formation and improve mixing by promoting turbulence and radial flow
    • distributes air or oxygen-enriched gas for aeration and oxygen transfer
  • suitable for shear-sensitive cells and low-viscosity broths
    • Advantages low shear, simple design, and efficient oxygen transfer
    • Riser and downcomer sections create liquid circulation loop
      • Riser contains gas-liquid mixture with lower density and upward flow
      • Downcomer contains liquid only with higher density and downward flow
    • Liquid circulation driven by density difference between riser and downcomer eliminates need for mechanical agitation
    • Sparger at the bottom of the riser distributes gas for aeration and creates gas-liquid mixture
  • enables continuous operation and easy product separation
    • Advantages high enzyme stability, easy product separation, and continuous operation
      • Adsorption enzymes attached to solid support (cellulose, silica) by physical forces (van der Waals, hydrogen bonding)
      • Covalent bonding enzymes chemically bound to solid support (agarose, polyacrylamide) by stable covalent bonds
      • Entrapment enzymes trapped within a porous matrix (alginate, chitosan) by gelation or cross-linking
      • Encapsulation enzymes enclosed within a permeable membrane (liposomes, microcapsules) by emulsification or interfacial polymerization
    • Reactor configurations
      • immobilized enzymes packed into a column with substrate flowing through the bed
      • immobilized enzymes suspended by upward flow of substrate minimizing mass transfer limitations
      • enzymes confined by a selective membrane allowing continuous substrate and product flow
  • Optimizing bioreactor configuration based on bioprocess requirements
    • Consider shear sensitivity, oxygen demand, mixing requirements, and downstream processing
    • Conduct experiments and simulations to compare different configurations and operating conditions
      • Maintain similar hydrodynamic conditions (power input per volume, mixing time) at larger scales
      • Ensure adequate mixing and oxygen transfer by adjusting impeller design, aeration rate, and reactor geometry
      • Address heat transfer limitations by implementing cooling systems (jacket, coils, external heat exchangers)
