Phase equilibria and stability are crucial concepts in chemical engineering. They help us understand how different substances behave under various conditions. By studying phase diagrams, we can predict how materials will change state as temperature, pressure, and composition vary.
Gibbs energy analysis is key to determining phase stability. It allows us to identify the most stable phase at given conditions. The helps us calculate the degrees of freedom in a system, guiding our understanding of phase behavior in different mixtures.
Phase Equilibria and Stability
Construction of phase diagrams
Top images from around the web for Construction of phase diagrams

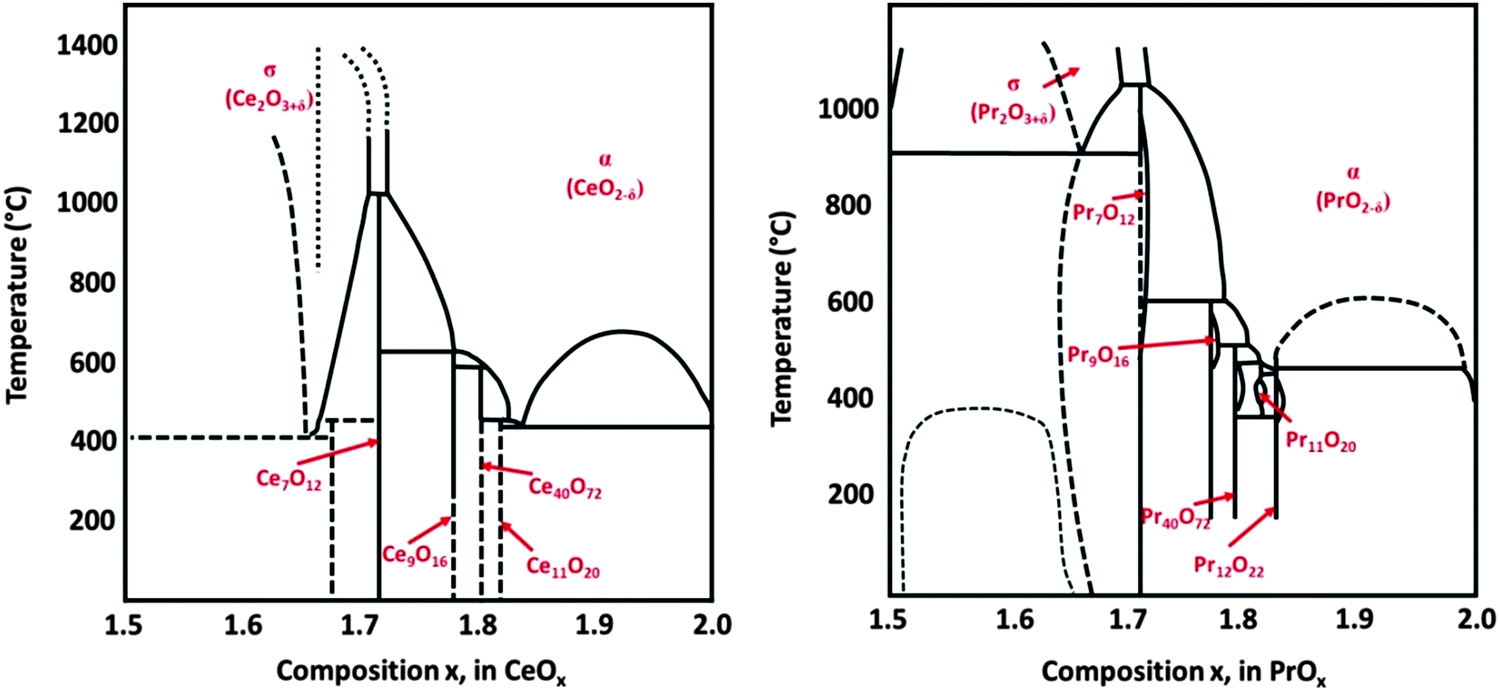

Controlling the physics and chemistry of binary and ternary praseodymium and cerium oxide ... View original
Is this image relevant?
Controlling the physics and chemistry of binary and ternary praseodymium and cerium oxide ... View original
Is this image relevant?
1 of 1
Top images from around the web for Construction of phase diagrams
Controlling the physics and chemistry of binary and ternary praseodymium and cerium oxide ... View original
Is this image relevant?
Controlling the physics and chemistry of binary and ternary praseodymium and cerium oxide ... View original
Is this image relevant?
1 of 1
- Phase diagrams provide a graphical representation of the state of matter as a function of temperature, pressure, and composition
- Different types of phase diagrams exist for various systems:
- Unary (single-component) systems (water)
- Binary (two-component) systems (ethanol-water)
- Ternary (three-component) systems (oil-water-surfactant)
- Interpreting phase diagrams involves:
- Identifying phases present at a given temperature, pressure, and composition (solid, liquid, gas)
- Determining phase transitions and coexistence regions (, boiling, )
- Locating critical points and triple points where multiple phases coexist ( of CO2)
Stability analysis with Gibbs energy
- () is defined as , where is enthalpy, is temperature, and is entropy
- The phase with the lowest Gibbs free energy is considered the most stable at a given temperature and pressure (diamond vs. graphite)
- Chemical potential () represents the partial molar Gibbs free energy of component in a mixture
- At equilibrium, the chemical potentials of each component must be equal in all phases (vapor-liquid equilibrium)
- For a phase to be stable, its chemical potential must be lower than in any other phase (supersaturation)
Factors affecting phase equilibria
- Temperature effects:
- Higher temperatures generally favor the formation of higher-entropy phases (gas over liquid, liquid over solid)
- Phase transitions occur at specific temperatures for a given pressure (, )
- Pressure effects:
- Higher pressures generally favor the formation of denser phases (solid over liquid, liquid over gas)
- Phase transitions occur at specific pressures for a given temperature (vapor pressure)
- Composition effects:
- Varying composition can lead to the formation of different phases or phase mixtures (alloys)
- Eutectic and peritectic points in binary systems indicate specific compositions where three phases coexist (solder)
Application of Gibbs phase rule
- Gibbs phase rule is expressed as , where:
- represents the degrees of freedom (variance)
- is the number of components
- is the number of phases in equilibrium
- Degrees of freedom refer to the number of intensive variables (temperature, pressure, composition) that can be independently varied without changing the number of phases in equilibrium
- Applying the phase rule to different systems:
- Unary systems: (ice-water-vapor)
- Binary systems: (salt-water)
- Ternary systems: (oil-water-alcohol)
