6.1 Pole placement control strategy

2 min read•july 25, 2024

Pole placement control is a powerful technique for shaping system dynamics. By strategically positioning closed-loop poles, engineers can achieve desired and performance characteristics. This method leverages state feedback to exert precise control over system behavior.

The approach involves selecting pole locations based on performance criteria like and . By manipulating the through selection, designers can craft systems with optimal response properties. Pole placement offers a direct link between mathematical modeling and real-world system behavior.

Pole Placement Control Strategy

Concept of pole placement

Top images from around the web for Concept of pole placement

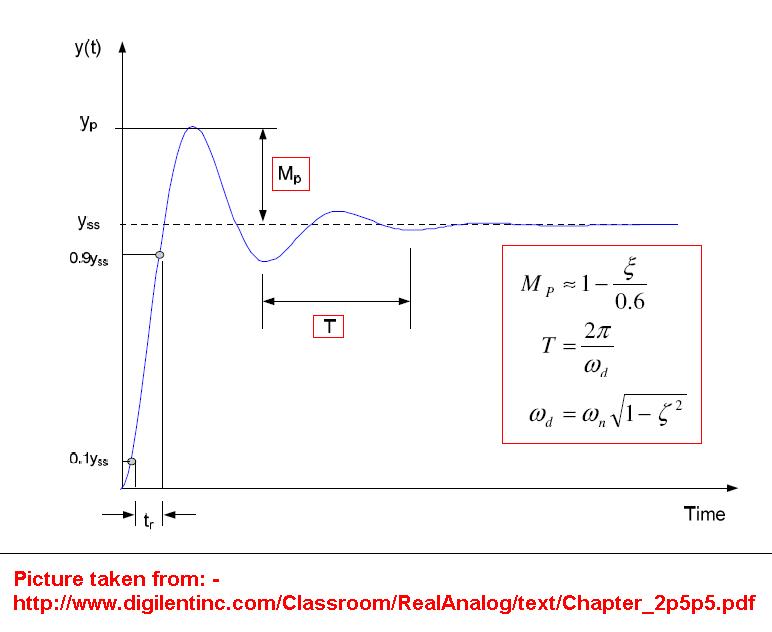

  • control system - Describing step response in terms of poles and zeros of transfer function ... View original

    Is this image relevant?

  • control system - Describing step response in terms of poles and zeros of transfer function ... View original

    Is this image relevant?

  • control system - Describing step response in terms of poles and zeros of transfer function ... View original

    Is this image relevant?

1 of 3

Top images from around the web for Concept of pole placement

  • control system - Describing step response in terms of poles and zeros of transfer function ... View original

    Is this image relevant?

  • control system - Describing step response in terms of poles and zeros of transfer function ... View original

    Is this image relevant?

  • control system - Describing step response in terms of poles and zeros of transfer function ... View original

    Is this image relevant?

1 of 3
  • Pole placement designs feedback control systems by selecting closed-loop pole locations
  • determine dynamics and stability as roots of characteristic equation
  • Control objectives encompass stability, ,
  • utilizes full state information enabling arbitrary pole placement

Pole locations and system response

  • Complex plane pole locations indicate system stability (left-half plane: stable, right-half plane: unstable, imaginary axis: marginally stable)
  • nearest imaginary axis most influence system response
  • affects response speed measured by distance of poles from origin
  • determines oscillatory behavior based on angle of poles from negative real axis
  • Time-domain characteristics include settling time, , overshoot, steady-state error

State feedback controller design

  • State-space representation: x˙=Ax+Bu\dot{x} = Ax + Bu, y=Cx+Duy = Cx + Du
  • State feedback : u=−Kxu = -Kx
  • Closed-loop system: x˙=(A−BK)x\dot{x} = (A - BK)x
  • Characteristic equation: det(sI−A+BK)=0det(sI - A + BK) = 0
  • computes feedback gain matrix K
  • necessary for pole placement, assessed via controllability matrix: [BABA2B...An−1B][B \quad AB \quad A^2B \quad ... \quad A^{n-1}B]

Pole selection for system performance

  • Performance specifications include settling time, percent overshoot, rise time, steady-state error
  • Second-order system approximation uses natural frequency (ωn\omega_n) and damping ratio (ζ\zeta)
  • Pole placement strategies employ patterns (Butterworth, Bessel, ITAE optimal poles)
  • considerations address sensitivity to parameter variations and disturbance rejection
  • Tradeoffs balance fast response vs control effort, damping vs speed of response
  • Simulation and iteration fine-tune pole locations and verify system performance

Key Terms to Review (24)

Ackermann's Formula: Ackermann's Formula is a mathematical method used in control theory for determining the state feedback gains needed to place the poles of a linear time-invariant system at desired locations in the complex plane. This formula is particularly useful in pole placement strategies as it provides a systematic approach to achieve specific dynamic performance by selecting appropriate eigenvalues.
Adaptive Control: Adaptive control is a type of control strategy that automatically adjusts the parameters of a controller to adapt to changing conditions or uncertainties in a system. This flexibility allows systems to maintain desired performance levels despite variations in dynamics or external disturbances, making adaptive control essential for complex and dynamic environments.
Characteristic Equation: The characteristic equation is a polynomial equation derived from a linear time-invariant system's differential equation, which defines the system's dynamics and stability. It is crucial in determining the locations of poles in the complex plane, which directly influence the system's behavior in terms of stability, response speed, and oscillations. By manipulating the characteristic equation, control engineers can design systems that meet specific performance criteria.
Control Law: A control law is a mathematical relationship or algorithm that dictates how a control system modifies its output to achieve a desired behavior or performance in response to changes in the system's state or external conditions. It serves as the foundation for designing control strategies, allowing systems to adapt and respond dynamically to varying inputs and disturbances.
Controllability: Controllability refers to the ability of a control system to steer its state variables to desired values within a finite time, using appropriate control inputs. This concept is crucial as it helps determine whether a system can be effectively controlled and how control strategies can be designed. A system is said to be controllable if it is possible to move the state from any initial condition to any final condition in a finite time interval, which is vital for implementing strategies like minimum variance control and pole placement.
Damping Ratio: The damping ratio is a dimensionless measure that describes how oscillations in a dynamic system decay after a disturbance. It quantifies the relationship between the actual damping in a system and the critical damping needed to prevent oscillations. A crucial aspect of control systems, the damping ratio impacts stability, response time, and overshoot in pole placement strategies.
Dominant poles: Dominant poles are the poles of a transfer function that have the greatest influence on the system's dynamic behavior, particularly its response time and stability. In control theory, these poles are typically located close to the imaginary axis in the left-half of the s-plane, meaning they dictate how quickly a system responds and how oscillatory it is. The placement of dominant poles is crucial in designing control strategies to achieve desired performance characteristics.
Feedback gain: Feedback gain refers to a multiplier applied to the output of a control system that influences how the system reacts to its current state. This gain is crucial for determining the stability and responsiveness of the system, impacting how quickly and effectively it can adjust to changes in input or disturbances. A well-designed feedback gain can enhance performance by enabling precise control over the system's behavior.
Feedback loop: A feedback loop is a system structure that allows outputs of a process to be returned as inputs, creating a cycle of information that influences future outputs. This mechanism is crucial in control systems, where it helps maintain desired performance by adjusting system behavior based on the difference between the actual output and the desired output. Feedback loops can be negative, promoting stability and reducing errors, or positive, amplifying changes and driving the system toward instability.
Lyapunov Method: The Lyapunov Method is a mathematical approach used to assess the stability of dynamic systems by constructing a Lyapunov function, which is a scalar function that helps in determining the system's behavior over time. This method is essential in control theory as it provides criteria to ensure stability without necessarily solving differential equations directly. By evaluating the time derivative of the Lyapunov function, insights can be gained about the system's stability and behavior around equilibrium points.
Model Reference Adaptive Control: Model Reference Adaptive Control (MRAC) is a type of adaptive control strategy that adjusts the controller parameters in real-time to ensure that the output of a controlled system follows the behavior of a reference model. This approach is designed to handle uncertainties and changes in system dynamics, making it particularly useful in applications where the system characteristics are not precisely known or may change over time.
Natural Frequency: Natural frequency is the frequency at which a system tends to oscillate in the absence of any driving force. This characteristic frequency is crucial for understanding how a system responds to external inputs, particularly in control strategies where stability and response time are key considerations. Knowing the natural frequency helps in designing controllers that effectively manage the system's behavior, particularly in relation to pole placement techniques.
Overshoot: Overshoot refers to the phenomenon where a system exceeds its desired final output or steady-state value during transient response before settling down. This characteristic is significant in control systems, as it affects stability, performance, and how quickly a system can respond to changes.
Parameter Estimation: Parameter estimation is the process of determining the values of parameters in a mathematical model based on measured data. This is crucial in adaptive control as it allows for the dynamic adjustment of system models to better reflect real-world behavior, ensuring optimal performance across varying conditions.
Pole assignment technique: The pole assignment technique is a control design method that allows the placement of the closed-loop poles of a system in specific locations in the complex plane, effectively shaping the system's dynamic response. By altering the feedback gain, this technique modifies the system's stability and performance characteristics, enabling engineers to achieve desired transient responses and steady-state behaviors. This approach is fundamental in control theory, especially for systems requiring precise control over their dynamics.
Rise time: Rise time refers to the duration it takes for a system's response to transition from a specified low level to a specified high level, typically measured between 10% and 90% of the final value. It is a key performance metric used to assess how quickly a control system can react to changes or disturbances, influencing overall responsiveness and stability.
Robustness: Robustness refers to the ability of a control system to maintain performance despite uncertainties, disturbances, or variations in system parameters. It is a crucial quality that ensures stability and reliability across diverse operating conditions, enabling the system to adapt effectively and continue functioning as intended.
Self-Tuning Control: Self-tuning control refers to a type of adaptive control system that automatically adjusts its parameters in real-time to improve performance based on feedback from the controlled system. This approach allows the controller to adapt to changes in the system dynamics or the environment without human intervention, making it especially valuable for complex or time-varying systems. It combines principles of estimation and optimization, resulting in a robust control strategy capable of handling uncertainties.
Settling Time: Settling time is the duration required for a system's output to reach and remain within a specified range of the final value after a disturbance or a change in input. This concept is essential for assessing the speed and stability of control systems, particularly in how quickly they can respond to changes and settle into a steady state.
Stability: Stability refers to the ability of a control system to maintain its desired performance in response to disturbances or changes in the system dynamics. It plays a crucial role in ensuring that a system remains bounded and does not exhibit unbounded behavior over time, which is essential for adaptive control techniques to function effectively.
State feedback control: State feedback control is a method used in control systems where the controller uses the current state of the system to determine the control input. This approach allows for dynamic adjustment of the system's behavior by manipulating its state variables to achieve desired performance. By placing poles of the system's closed-loop transfer function in locations that ensure stability and desired response characteristics, state feedback control plays a vital role in maintaining system stability and performance.
Steady-State Error: Steady-state error is the difference between the desired output and the actual output of a control system as time approaches infinity. It is crucial for evaluating the performance of control systems and provides insight into how well a system can track or regulate inputs over time. Understanding this concept helps in designing systems that can minimize error through feedback mechanisms and adjustments, particularly in adaptive and self-tuning scenarios.
System Poles: System poles are specific values in the complex plane that determine the stability and dynamic behavior of a control system. They represent the roots of the characteristic equation derived from the system's transfer function, and their location indicates how the system will respond to inputs, including aspects such as overshoot, settling time, and oscillations. Understanding system poles is essential for designing effective control strategies, especially in pole placement techniques where desired dynamic performance is achieved by placing these poles in specific locations.
Transient Response: Transient response refers to the behavior of a dynamic system as it reacts to changes in its input, typically characterized by temporary fluctuations before settling into a steady state. It plays a crucial role in understanding how quickly and effectively a system can adjust to new conditions, which is essential for various control strategies, including state feedback and output feedback methods.
