14.4 Ultrasonic imaging and non-destructive testing
4 min read•july 24, 2024
Ultrasonic imaging uses high- sound waves to peek inside materials without damaging them. It's like having X-ray vision, but with sound! This technique is super useful for finding hidden flaws in everything from metal pipes to human bodies.
The quality of ultrasonic images depends on a bunch of factors. Things like the frequency of the sound waves, the type of sensor used, and even the material being scanned all play a role. It's a bit like adjusting your camera settings to get the perfect photo.
Ultrasonic Imaging Principles and Applications
Principles of ultrasonic imaging
Top images from around the web for Principles of ultrasonic imaging
Ultrasound · Physics View original
Is this image relevant?
UTRASONOGRAPHY (SONO) - WikiLectures View original
Is this image relevant?
A "MEDIA TO GET" ALL DATAS IN ELECTRICAL SCIENCE...!!: Piezoelectric Wave-Propagation Transducers View original
Is this image relevant?
Ultrasound · Physics View original
Is this image relevant?
UTRASONOGRAPHY (SONO) - WikiLectures View original
Is this image relevant?
1 of 3
Top images from around the web for Principles of ultrasonic imaging
Ultrasound · Physics View original
Is this image relevant?
UTRASONOGRAPHY (SONO) - WikiLectures View original
Is this image relevant?
A "MEDIA TO GET" ALL DATAS IN ELECTRICAL SCIENCE...!!: Piezoelectric Wave-Propagation Transducers View original
Is this image relevant?
Ultrasound · Physics View original
Is this image relevant?
UTRASONOGRAPHY (SONO) - WikiLectures View original
Is this image relevant?
1 of 3
- Ultrasonic imaging fundamentals
- High-frequency sound waves (1-50 MHz) penetrate materials to create images

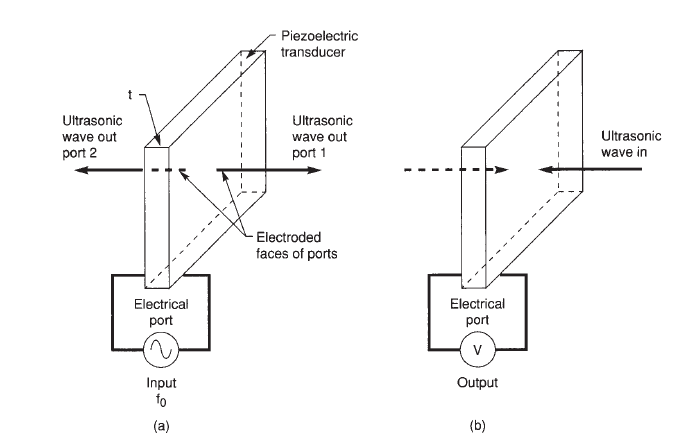

- Piezoelectric transducers convert electrical energy into mechanical vibrations generating sound waves
- Waves propagate through materials interacting with internal structures
- Reflected or transmitted waves detected to form images of internal features
- Principles of wave interaction with materials
- occurs at interfaces between materials with different acoustic impedances (steel-air boundary)
- bends waves when passing through boundaries at an angle (water-steel interface)
- reduces wave amplitude as it travels through a medium due to absorption and scattering
- Image formation process
- Time-of-flight measurements determine depth of reflectors based on wave travel time
- Amplitude analysis of reflected signals indicates strength of reflectors (large void vs small crack)
- Signal processing techniques reconstruct 2D or 3D images from raw data (, )
- Applications in non-destructive testing
- Flaw detection identifies internal defects without damaging the material (cracks, voids, inclusions)
- Thickness measurements determine material thickness without access to both sides (pipe wall thickness)
- Material characterization assesses properties like grain size or elastic moduli
- Weld inspection evaluates quality and integrity of welded joints
- Composite material evaluation detects delaminations or foreign object inclusions
Ultrasonic NDT Techniques and System Factors
Ultrasonic NDT techniques
-
- Single transducer transmits and receives ultrasonic pulses
- Time delay between transmitted and reflected signals measures depth of reflectors
- Detects flaws and measures thickness in various materials (metals, plastics, composites)
- Through-transmission technique
- Separate transmitter and receiver positioned on opposite sides of test object
- Measures signal attenuation to detect flaws or variations in material properties
- Inspects materials with high attenuation (rubber, some composites)
- Phased array technique
- Multiple element transducer array electronically steers and focuses beam
- Improves inspection coverage and flexibility by sweeping beam without moving probe
- Creates sector scans for weld inspection or curved surface examination
- Time-of-flight diffraction (TOFD) technique
- Two transducers in pitch-catch arrangement detect diffracted waves from flaw tips
- Accurately sizes and positions flaws based on diffraction patterns
- Widely used for weld inspection in critical applications (nuclear, aerospace)
Factors in ultrasonic imaging quality
- Frequency of ultrasound
- Higher frequencies (10-50 MHz) improve resolution but reduce penetration depth
- Lower frequencies (1-5 MHz) increase penetration but reduce resolution
- Transducer characteristics
- Bandwidth affects axial resolution determining ability to separate closely spaced reflectors
- Element size influences lateral resolution impacting minimum detectable flaw size
- Focusing capabilities shape beam to enhance resolution in specific regions
- Material properties
- Acoustic impedance mismatch determines reflection and transmission at interfaces
- Attenuation reduces signal strength limiting inspection depth in highly attenuative materials
- (SNR)
- Higher SNR improves detection of small flaws or subtle features in noisy materials
- Influenced by system electronics noise and material scattering properties
- Scanning parameters
- Step size affects spatial sampling determining image detail and smallest detectable features
- Scan speed impacts data acquisition rate balancing inspection time and resolution
- Signal processing techniques
- Filtering methods reduce noise enhancing flaw detection in challenging materials
- Image enhancement algorithms improve contrast and feature visibility in reconstructed images
Ultrasonic vs other NDT methods
- Advantages of ultrasonic NDT
- Non-invasive inspection preserves material integrity for continued use
- High sensitivity detects flaws as small as fractions of a millimeter
- Subsurface inspection capabilities examine internal structures without disassembly
- Portable equipment enables on-site inspections in various environments
- Real-time imaging allows immediate assessment of component condition
- Minimal safety hazards compared to radiographic methods reducing personnel risk
- Limitations of ultrasonic NDT
- Skilled operators required for proper setup and result interpretation
- High attenuation materials (rubber, some plastics) challenging to inspect
- Complex geometries or rough surfaces complicate signal coupling and interpretation
- Coupling medium (water, gel) needed between transducer and test object
- Near-surface defects difficult to detect in certain pulse-echo configurations
- Comparison with other NDT methods
- X-ray radiography better detects volumetric flaws but poses radiation hazards
- Eddy current testing effectively finds surface and near-surface flaws in conductive materials
- Magnetic particle testing limited to ferromagnetic materials and surface/near-surface flaws
- Liquid penetrant testing only detects surface-breaking defects but simple to apply
